Direct transport VPN configuration
Find out how to configure direct transport VPNs on Cisco routers to provide permanent IPsec network connections between private networks.
Previous articles in this series on IPsec VPN configuration using Cisco routers covered building a VPN gateway and clients for client-to site connectivity as well as Cisco's EzVPN to support network-to-network VPN topologies. In this article, we will look at options for implementing static network-to-network IPsec links, or direct transport VPNs.
Static network-to-network IPsec policies are used to provide permanent, secure network connections between private networks, utilizing the unsecured public network for secure data transport. In previous articles we examined dynamically established split-tunneling and full-crypto IPsec policy configurations. Similar structural parallels are evident in static IPsec VPN configurations used to implement network-to-network security topologies. However, with dynamic client configurations the differences in policy structure denote what traffic is secured between the client and the IPsec gateway. With static IPsec policies the operational focus of the policy shifts to the "reachability" of the networks that need to exchange secured data. Through this lens, using static IPsec crypto policies on Cisco routers can be implemented using one of two approaches: direct and indirect transport VPNs.
Direct vs. indirect transport VPNs
The direct transport approach is used to secure directly routable IP traffic exchanged between networks. The key operating element of a direct transport VPN is that the exchange of data relies on a route reachability policy that is independent of the IPsec security policy. This is similar in structure to the client VPN split-tunnel policy, in which specific network-to-network security policies are defined on each of the IPsec peers. These static IPsec policies then secure specific IP data communications exchanges between specific networks as the traffic passes through IPsec peered gateway or transit routers. The big advantages to using direct VPNs are twofold. First, they are more efficient than indirect VPNs, adding only 28 bytes of additional packet overhead. Second, the secure and unsecured traffic flows are managed by a single routing policy.
 |
||||
|
|
|||
|
||||
That is where indirect VPNs outshine the direct VPN approach. They enable networks that do not have any direct IP reachability the capacity to exchange data securely, using a combination of a tunneling protocol and IPsec. This functionality does come with a price, however. Indirect VPN solutions add more than 60 bytes of overhead to each packet and the additional headache of having to manage both private and public routing policies.
Direct transport VPN configuration
Direct transport VPNs are a good match in any scenario where additional security needs to be overlaid on existing IP network infrastructure. They could include the following:
- Augmenting application layer transaction security or network-specific data exchanges in a private campus or enterprise environment
- Securing private data exchanges over carrier provided packet/cell/frame (MPLS) transport
- As a WAN transport alternative to connect a remote location to a network hub using a single connectivity path.
Click on the image for a full-size view

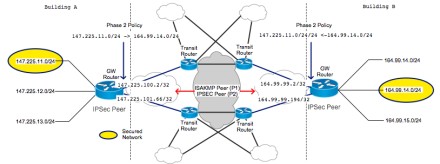

For example, let's say you have are large campus network, with two new research teams that need to securely exchange data, one at Building A and one at Building D. The diagram above illustrates how that could be diagrammed and will form the basis for our first configuration example. When building a direct transport VPN solution, one of the first things to consider is the degree of security required. In the illustration, the IPsec policy could be installed either on the gateway routers or the transit routers. If the policy requires LAN-to-LAN security, then the IPsec policy must be implemented on the GW router. Alternatively, if we are only concerned with encrypting the traffic as it leaves the "LAN" we could implement the policies on the transit routers. Both the "gateway" and "transit" scenarios have a degree of complexity in terms of configuration. Both options require IPsec/ISAKMP peer definitions for each path.
For our configuration example, we will secure the traffic on the gateway router. The IPsec configuration process has six steps. The Building A configuration is in blue, and the Building D configuration is in red.
Step 1. Define ISAKMP (Phase 1) policy:
build-a-gw1(config)#crypto isakmp policy 10 build-a-gw1(config-isakmp)# encr 3des build-a-gw1(config-isakmp)# authentication pre-share build-a-gw1(config-isakmp)# group 2 build-a-gw1(config-isakmp)# lifetime 3600 build-d-gw1(config)#crypto isakmp policy 10 build-d-gw1(config-isakmp)# encr 3des build-d-gw1(config-isakmp)# authentication pre-share build-d-gw1(config-isakmp)# group 2 build-d-gw1(config-isakmp)# lifetime 3600
Step 2. Define ISAKMP policy pre-shared keys:
build-a-gw1(config)# crypto isakmp key cisco123 address 0.0.0.0 0.0.0.0 build-a-gw1(config)# crypto isakmp keepalive 30 build-d-gw1(config)# crypto isakmp key cisco123 address 0.0.0.0 0.0.0.0 build-d-gw1(config)# crypto isakmp keepalive 30
Step 3. Build IPsec (Phase 2) transform set:
build-a-gw1(config)#$crypto IPsec transform-set direct-trans-vpn esp-3des esp-md5-hmac build-d-gw1(config)#$crypto IPsec transform-set direct-trans-vpn esp-3des esp-md5-hmac
Step 4. Build traffic qualifier access list:
build-a-gw1(config)#ip access-list extended CRYPT build-a-gw1(config-ext-nacl)#permit ip 172.30.69.0 0.0.0.255 172.30.41.0 0.0.0.255 build-d-gw1(config)#ip access-list extended CRYPT build-d-gw1(config-ext-nacl)#permit ip 172.30.41.0 0.0.0.255 172.30.69.0 0.0.0.255
Step 5. Define IPsec static crypto map:
build-a-gw1(config)#crypto map dir-trans-vpn-buld-a 10 IPsec-isakmp build-a-gw1(config-crypto-map)#set transform-set direct-trans-vpn build-a-gw1(config-crypto-map)# match address CRYPT build-a-gw1(config-crypto-map)#set peer 164.99.99.2 build-a-gw1(config-crypto-map)#set peer 164.99.99.194 build-d-gw1(config)#crypto map dir-trans-vpn-buld-d 10 IPsec-isakmp build-d-gw1(config-crypto-map)#set transform-set gre-vpn-transform build-d-gw1(config-crypto-map)#match address CRYPT build-d-gw1(config-crypto-map)#set peer 147.225.100.2 build-d-gw1(config-crypto-map)#set peer 147.225.101.66
Step 6. Install static crypto map:
build-a-gw1(config)#interface FastEthernet 0/0 build-d-gw1(config-if)#crypto map dir-trans-vpn-buld-a build-a-gw1(config)#interface FastEthernet 0/1 build-a-gw1(config-if)#crypto map dir-trans-vpn-buld-a build-d-gw1(config)#interface FastEthernet 0/0 build-d-gw1(config-if)#crypto map dir-trans-vpn-buld-d build-d-gw1(config)#interface FastEthernet 0/1 build-d-gw1(config-if)#crypto map dir-trans-vpn-buld-d
Once the configuration is built and installed, there are two commands you can use to verify operation. The first command, <show crypto isakmp sa>, is used to verify the state of ISAKMP on the router:
build-a-gw1#sh crypto isakmp sa IPv4 Crypto ISAKMP SA dst src state conn-id slot status 147.225.100.2 164.99.99.2 QM_IDLE 2073 0 ACTIVE build-d-gw1# sh crypto isakmp sa IPv4 Crypto ISAKMP SA dst src state conn-id slot status 164.99.99.2 147.225.100.2 QM_IDLE 2071 0 ACTIVE
According to Cisco's documentation there are eight ISAKMP states:
A properly configured and active ISAKMP peer will be in QM_IDLE state. If the ISAKMP state of a peer is other than QM_IDLE, there is either an error in the configuration or the router is establishing the ISAKMP peering. The other handy command is <show crypto IPsec sa>:
build-a-gw1#show crypto IPsec sa
interface: FastEthernet0/0
Crypto map tag: dir-trans-vpn-buld-a , local addr 147.225.100.2
protected vrf: (none)
local ident (addr/mask/prot/port): (147.225.11.0/255.255.255.0/0/0)
remote ident (addr/mask/prot/port): (164.99.14.0//255.255.255.0/0/0)
current_peer 164.99.99.2 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 1711, #pkts encrypt: 1711, #pkts digest: 1711
#pkts decaps: 291, #pkts decrypt: 291, #pkts verify: 291
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 2, #recv errors 0
local crypto endpt.: 147.225.100.2, remote crypto
endpt.: 164.99.99.2
path mtu 1500, ip mtu 1500, ip mtu idb FastEthernet0/0
current outbound spi: 0x0(0)
inbound esp sas:
spi: 0x9DD44A4(165495972)
transform: esp-3des esp-md5-hmac ,
in use settings ={Tunnel, }
conn id: 141, flow_id: AIM-VPN/SSL-1:141,
crypto map: dir-trans-vpn-buld-a
sa timing: remaining key lifetime (k/sec): (4545643/2916)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0xDD5316D7(3713210071)
transform: esp-3des esp-md5-hmac ,
in use settings ={Tunnel, }
conn id: 142, flow_id: AIM-VPN/SSL-1:142,
crypto map: dir-trans-vpn-buld-a
sa timing: remaining key lifetime (k/sec): (4545643/2916)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
outbound ah sas:
outbound pcp sas:
The command generates two data elements for each Phase 2 peering relationship, grouped by policy interface. The first element provides the encryption, compression, and error statistics for the crypto peering policy. The second element details the lifetime and mode information for the active inbound and outbound SAs associated with the policy. This command provides you with the data to see if the policy is actually working as advertised. If you have the ISAKMP peers successfully established but are not seeing the policy statistic counters increment, check your traffic qualifier access list. It's more than likely that there is an error in your traffic-matching logic. Hybrid direct VPN configuration
Our second configuration example is a hybrid of the direct and indirect VPN models. Like a direct VPN implementation, it uses only IPsec to transport data between secured networks. But like an indirect VPN implementation, this solution can be used to provide secure data exchange between networks that are non-routable or are not reachable without the aid of the security policy.
Click on the image for a full-size view

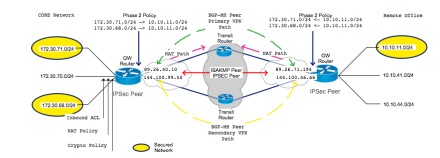

The diagram above illustrates our configuration scenario. It this example, we are providing Internet connectivity for all networks at the core and remote locations and enabling secure data exchange between some of the networks at each location. In this case, each location is using RFC-1918 private Internet addressing, so NAT translation will be used to provide Internet access. Like our first example, each site has two links terminating on a single gateway router, but in this case they are two different ISP links, both providing a default route path. One of the links is 10 Mbps and is used as the primary traffic path; the other is a 2 Mbps (downlink), 512Kbps (uplink) ADSL link used for VPN backup.
To provide dynamic path failover, a dynamic routing protocol must be employed. Because RFC-1918 addressing is being used and there is no direct network connectivity to support an Interior Gateway Protocol (IGP), we will use Border Gateway Protocol (BGP) multihop to exchange routing information and set path preference. A distribute list is used to filter the BGP routing announcements, and the Cisco proprietary BGP metric weight is used to set path preference.
From a packet processing perspective, all of the LAN traffic passes through the NAT policy prior to the IPsec policy. So we'll use an explicit NAT traffic-matching access list to pass the traffic that must be encrypted to the IPsec policy. Once the traffic is qualified by the IPsec policy, the "non-routable" IP packets are ecapsulated in an ESP frame that sources from the public interface of the IPsec peer gateway router to the public destination address of the other peer router. This configuration involves 11 steps that are outlined below. The core data center configuration is in green, and the remote office configuration is in orange.
Step 1. Define ISAKMP (Phase 1) policy:
CORE-VPN-GW(config)#crypto isakmp policy 10 CORE-VPN-GW(config-isakmp)# encr 3des CORE-VPN-GW(config-isakmp)# authentication pre-share CORE-VPN-GW(config-isakmp)# group 2 CORE-VPN-GW(config-isakmp)# lifetime 3600 REMOTE-VPN-GW(config)#crypto isakmp policy 10 REMOTE-VPN-GW(config-isakmp)# encr 3des REMOTE-VPN-GW(config-isakmp)# authentication pre-share REMOTE-VPN-GW(config-isakmp)# group 2 REMOTE-VPN-GW(config-isakmp)# lifetime 3600
Step 2. Define ISAKMP policy pre-shared keys:
CORE-VPN-GW(config)# crypto isakmp key cisco123 address 0.0.0.0 0.0.0.0 REMOTE-VPN-GW(config)# crypto isakmp key cisco123 address 0.0.0.0 0.0.0.0
Step 3. Build IPsec (Phase 2) transform set:
CORE-VPN-GW(config)#crypto IPsec transform-set CRT-ESP-COMP esp-3des esp-md5-hmac comp-lzs REMOTE-VPN-GW(config)#crypto IPsec transform-set RRT-ESP-COMP esp-3des esp-md5-hmac comp-lzs
Step 4. Build traffic-qualifier access list:
CORE-VPN-GW(config)# CORE-VPN-GW(config-crypto-map)#permit ip 172.30.71.0 0.0.0.255 10.10.11.0 0.0.0.255 CORE-VPN-GW(config-crypto-map)#permit ip 172.30.68.0 0.0.0.255 10.10.11.0 0.0.0.255 REMOTE-VPN-GW(config)# REMOTE-VPN-GW(config-crypto-map)#permit ip 10.10.11.0 0.0.0.255 172.30.71.0 0.0.0.255 REMOTE-VPN-GW(config-crypto-map)#permit ip 10.10.11.0 0.0.0.255 172.30.68.0 0.0.0.255
Step 5. Build NAT-qualifier access list:
CORE-VPN-GW(config)#ip access-list extended NAT CORE-VPN-GW(config-ext-nacl)#deny ip 172.30.68.0 0.0.0.255 10.10.11.0 0.0.0.255 CORE-VPN-GW(config-ext-nacl)#deny ip 172.30.71.0 0.0.0.255 10.10.11.0 0.0.0.255 CORE-VPN-GW(config-ext-nacl)#permit ip 172.30.68.0 0.0.0.255 any CORE-VPN-GW(config-ext-nacl)#permit ip 172.30.71.0 0.0.0.255 any CORE-VPN-GW(config-ext-nacl)#permit ip 172.30.70.0 0.0.0.255 any REMOTE-VPN-GW(config)#ip access-list extended NAT REMOTE-VPN-GW(config-ext-nacl)#deny ip 10.10.11.0 0.0.0.255 172.30.68.0 0.0.0.255 REMOTE-VPN-GW(config-ext-nacl)#deny ip 10.10.11.0 0.0.0.255 172.30.71.0 0.0.0.255 REMOTE-VPN-GW(config-ext-nacl)#permit ip 10.10.11.0 0.0.0.255 any REMOTE-VPN-GW(config-ext-nacl)#permit ip 10.10.41.0 0.0.0.255 any REMOTE-VPN-GW(config-ext-nacl)#permit ip 10.10.44.0 0.0.0.255 any
Step 6. Build NAT policy:
CORE-VPN-GW(config)#ip nat inside source list NAT interface FastEthernet 0/0 REMOTE-VPN-GW(config)#ip nat inside source list NAT interface FastEthernet 0/0
Step 7. Install NAT configuration:
CORE-VPN-GW(config)#int fa 0/0 CORE-VPN-GW(config-if)#ip nat outside CORE-VPN-GW(config)#int fa 0/1 CORE-VPN-GW(config-if)#ip nat inside REMOTE-VPN-GW(config)#int fa 0/0 REMOTE-VPN-GW(config-if)#ip nat outside REMOTE-VPN-GW(config)#int fa 0/1 REMOTE-VPN-GW(config-if)#ip nat inside
Step 8. Build static crypto map:
CORE-VPN-GW(config)#crypto map CORE-VPN 10 IPsec-isakmp CORE-VPN-GW(config-crypto-map)#set transform-set CRT-ESP-COMP CORE-VPN-GW(config-crypto-map)#match address CRYPT CORE-VPN-GW(config-crypto-map)#set peer 89.26.71.194 CORE-VPN-GW(config-crypto-map)#set peer 144.100.46.66 REMOTE-VPN-GW(config)#crypto map REM-VPN 10 IPsec-isakmp REMOTE-VPN-GW(config-crypto-map)#set transform-set RRT-ESP-COMP REMOTE-VPN-GW(config-crypto-map)#match address CRYPT REMOTE-VPN-GW(config-crypto-map)#set peer 89.26.40.10 REMOTE-VPN-GW(config-crypto-map)#set peer 144.100.99.50
Step 9. Install static crypto map:
CORE-VPN-GW(config)#interface FastEthernet0/0 CORE-VPN-GW(config-if)#description primary ISP path 10Mbit/s CORE-VPN-GW(config-if)#crypto map CORE-VPN CORE-VPN-GW(config)#interface FastEthernet0/1 CORE-VPN-GW(config)#description secondary ISP path 2/512 ADSL CORE-VPN-GW(config-if)#crypto map CORE-VPN REMOTE-VPN-GW(config)#interface FastEthernet0/0 REMOTE-VPN-GW(config-if)#description primary ISP path 10Mbit/s REMOTE-VPN-GW(config-if)#crypto map REM-VPN REMOTE-VPN-GW(config)#interface FastEthernet0/1 REMOTE-VPN-GW(config-if)#description secondary ISP path 2/512 ADSL REMOTE-VPN-GW(config-if)#crypto map REM-VPN
Step 10. Build BGP distribute list access list:
CORE-VPN-GW(config)#ip access-list standard VPN-BGP CORE-VPN-GW(config-std-nacl)#permit 172.30.71.0 0.0.0.255 CORE-VPN-GW(config-std-nacl)#permit 172.30.68.0 0.0.0.255 REMOTE-VPN-GW(config)#ip access-list standard VPN-BGP REMOTE-VPN-GW(config-std-nacl)#permit 10.10.11.0 0.0.0.255
Step 11. Build BGP policy:
CORE-VPN-GW(config)#router bgp 65020 CORE-VPN-GW(config-router)#network 172.30.71.0 mask 255.255.255.0 CORE-VPN-GW(config-router)#network 172.30.68.0 mask 255.255.255.0 CORE-VPN-GW(config-router)#neighbor 89.26.71.194 remote-as 65010 CORE-VPN-GW(config-router)#neighbor 89.26.71.194 ebgp-multihop CORE-VPN-GW(config-router)#neighbor 89.26.71.194 weight 62000 CORE-VPN-GW(config-router)#neighbor 89.26.71.194 distribute-list VPN-BGP out CORE-VPN-GW(config-router)#neighbor 89.26.71.194 soft- reconfiguration ibound CORE-VPN-GW(config-router)#neighbor 144.100.46.66 remote-as 65010 CORE-VPN-GW(config-router)#neighbor 144.100.46.66 ebgp-multihop CORE-VPN-GW(config-router)#neighbor 144.100.46.66 weight 62000 CORE-VPN-GW(config-router)#neighbor 144.100.46.66 distribute-list VPN-BGP out CORE-VPN-GW(config-router)#neighbor 144.100.46.66 soft- reconfiguration ibound REMOTE-VPN-GW(config)#router bgp 65010 REMOTE-VPN-GW(config-router)#network 10.10.11.0 mask 255.255.255.0 REMOTE-VPN-GW(config-router)#neighbor 89.26.40.10 remote-as 65020 REMOTE-VPN-GW(config-router)#neighbor 89.26.40.10 ebgp-multihop REMOTE-VPN-GW(config-router)#neighbor 89.26.40.10 weight 63000 REMOTE-VPN-GW(config-router)#neighbor 89.26.40.10 soft-reconfiguration i REMOTE-VPN-GW(config-router)#neighbor 89.26.40.10 distribute-list VPN-BGP out REMOTE-VPN-GW(config-router)#neighbor 144.100.99.50 remote-as 65020 REMOTE-VPN-GW(config-router)#neighbor 144.100.99.50 ebgp-multihop REMOTE-VPN-GW(config-router)#neighbor 144.100.99.50 weight 63000 REMOTE-VPN-GW(config-router)#neighbor 144.100.99.50 soft- reconfiguration i REMOTE-VPN-GW(config-router)#neighbor 144.100.99.50 distribute-list VPN-BGP out
Once the BGP process has been established, both of the VPN route candidates will be stored in the router's BGP database. But only one will appear in the routing table with the remote peer router's address listed as the gateway:
CORE-VPN-GW#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
10.0.0.0/24 is subnetted, 1 subnets
B 10.10.11.0 [20/0] via 89.26.40.10, 01:04:14
89.0.0.0/30 is subnetted, 1 subnets
C 89.26.40.8 is directly connected, FastEthernet0/0
144.100.0.0/30 is subnetted, 1 subnets
C 144.100.99.48 is directly connected, FastEthernet3/0
172.30.0.0/24 is subnetted, 4 subnets
C 172.30.71.0 is directly connected, FastEthernet2/0
C 172.30.70.0 is directly connected, FastEthernet1/1
C 172.30.68.0 is directly connected, FastEthernet1/2
S* 0.0.0.0/0 is directly connected, FastEthernet0/0
CORE-VPN-GW#
While this hybrid direct VPN variation works, the options for managing the IP routing information are limited to either static routes or BGP multihop, where the traditional "direct" configuration relies on routing policy that is independent of the security policy. Routing policy limitations aside, this approach should is more efficient in terms of packet overhead and does not present the packet size and segment size issues that accompany tunnel-based VPNs.
Both of the configuration examples above are very traditional static map-based IPsec configurations. They are secure and efficient, but lack scalability. That is where indirect VPN solutions provide a big advantage over direct VPNs. In our next article, we'll examine indirect VPN configuration.
Now that you can configure a direct transport VPN, you'll want to learn about the indirect type. Go to the main page of this series on Cisco IPsec VPN configuration to read the next article and all the others in the series.
