Network intelligence for dumb applications, Part 2

In Part two of this two-part series, we explored the difference between network and application awareness. Apart from the crude behaviors attributed to TCP or QoS, awareness is relatively new. However, there are indications of a trend towards a unified "intelligent" network infrastructure. In Part 2, the outward signs are examined and a little futurism applied to figure out where this is heading.

Unification
The relationship laid out in Part two between network and application awareness is not accidental. They represent two kinds of visibility -- one top-down (from the application) and the other bottom-up (from the network). They are aimed at unification into a coherent approach to assured application performance - in particular, for the benefit of VoIP. The drivers for this evolution aren't limited to VoIP -- rather, VoIP has defined the necessary criteria for a successful relationship between the network and application.

Given that application performance is a matter of quality of experience (QoE), defined either by end-user or by a business process, network mechanisms need to be more tightly bound to that experience. And regardless of how networks are implemented, some means of verifying their ability to support applications are needed. Inherent in both requirements is the development of models for application performance based upon IP behaviors.

New layer model

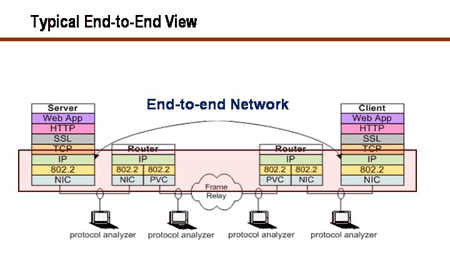

The end-to-end path is typically viewed at the level of IP -- or, in other words, it's all about packets. How packets are behaving is a function of all the contributing factors at Layers 1, 2, and 3, from one end-host through all the mid-path devices to the other (see Figure 1 below). Media (like wireless), NIC drivers, cross-traffic and a multitude of other forces (some dysfunctional) affect the passage of packets. And directly affect the QoE of the application.

Layers 4 to 7 are typically localized at the end-host (whether IP phone, server, or workstation). Beyond the end-host lies the influence of other systems, work processes or the end-user -- the so-called Layer 8. For VoIP, Layer 8 is clearly the subjective psycho-acoustic influences of the typical human.

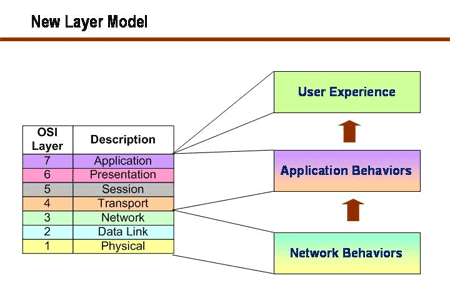

As shown in Figure 2 below, the "new layer model" for QoE can then be simplified to IP behaviors, application/host, and the end-user or external environment. The goal in this exercise is to ensure that networks effectively support a particular application such that it meets the requirements of the end-user. Necessary to this framework is an effective (set of) application model(s).

Application modeling
VoIP has done the network industry a huge favor (see VoIP: The face of the new network police). It has defined an approach for linking network behavior to application performance. A variety of means have been developed that perform that function. And in the process, an effective means for implementing application models at the network level has been developed. For example, network devices can assess MOS (mean opinion score) based on the underlying packet behaviors -- MOS, of course, representing VoIP performance in terms of subjective opinion.

Although MOS is an overly simplified metric (see MOS: A love-hate relationship) of limited value, it represents the core value of the underlying VoIP model. Breaking MOS into listening and conversational components (LQ and CQ) exposes more of that value. More importantly, this illustrates what is possible and that it is possible for other applications as well.

Intelligent networks

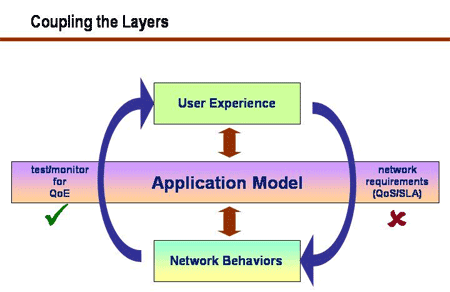

Given effective application models, the picture begins to resolve as shown in Figure 3 below. Specific application models can define requisite IP behaviors -- as the recently released ITU Y.1541 standard does -- for the purposes of QoS implementation and also for SLAs (see Death of SLAs). And conversely, the measured network performance can be translated into an effective QoE (MOS in the case of VoIP).

Today, the VoIP industry has developed effective means of doing the second step -- that is, MOS can be readily extracted from IP behaviors, whether by passively or actively sampling the network. Measuring MOS has changed from being unheard-of a few years ago to a relatively well understood feature of most VoIP infrastructures.

However, QoS mechanisms are still maturing (see Making the triple play). And the attention on network health has not borne the full extent of its fruits -- QoS won't work on a broken network -- so many networks are simply not ready for QoS. And reliable mechanisms that ensure end-to-end paths are not widely available for broadly heterogeneous networks. Finally, the prospects for "converged QoS" mechanisms -- QoS implemented for multiple applications with distinct requirements and metrics haven't begun to appear.

But once a robust system for coupling IP behaviors to application performance emerges, the foundation for a "smart," if not truly "intelligent," network will have finally been established. This coupling offers the visibility (today's "awareness" mechanisms) that is requisite for self-healing, autonomic networks that effectively support the applications that use them.

Autonomy in the sense of Step 4 of Gartner's IT maturity model will require much, much more: means for automated assessment, remediation and provisioning, standardized interfaces for querying network devices (SNMP must go away!), and SOA-style frameworks that integrate networks with application services. But that's a few years away.

For now, we will have to make do with "just aware."

References:
ITU Y.1541
NetConf
