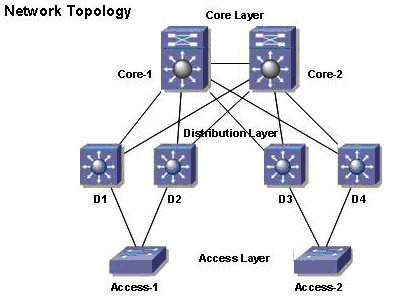

In Part 2 of our series of practical configurations I showed you how to configure your distribution layer devices and manipulate protocols such as Hot Standby Router Protocol (HSRP) and Spanning Tree Protocol (STP). In this tip, I'll show you how to configure the links from distribution to core and include some simple commands to help validate your configuration. And again, the topology I will be using for the configuration examples is depicted below.


[IMAGE]

Distribution recap

Recall from Part 2 that I showed you how to change the STP priority levels to ensure the root bridge for a spanning tree is in the correct place in your network. Remember how important this is when using fault tolerant protocols like HSRP and VRRP. The diagram below illustrates the L2 traffic flow when we configure D1 as both the root bridge and the active HSRP gateway.


[IMAGE]

Keep in mind that when making configuration changes to modify traffic flow within your network, it's not something you should do just because you can. In cases like my example, where STP and HSRP are involved, then yes – but doing so in every situation can lead to possible sub-optimal flow, which of course can lead to even bigger problems.

Routing from Layer to Layer

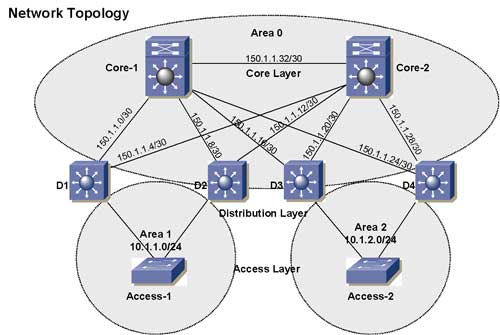

Throughout this series I've shown you how to configure your network to get data from edge to distribution – now one step further is configuring your distribution and core devices to route that traffic to its proper destination. The age-old argument of "what protocol" to use is beyond the scope of this article, so I'm going to stick with OSPF. Using this routing topology diagram as a guideline, I will show you how to properly configure OSPF from distribution to core. In this example, I'm going to focus solely on the Layer 3 portion.


[IMAGE]

So, now I've configured OSPF on each
