Open source network monitoring: Monitor your routers with Cacti

What is Cacti?

Based on RRDTool, Cacti is "a complete network graphing solution." That means that Cacti polls your devices, gathers the data, then provides graphs based on what you configured. Cacti is a free open source tool that offers an easy-to-use Web interface. Cacti can be used to complement other open source tools such as Nagios (for instance, using Cacti to monitor performance of devices that are being monitored by Nagios).

Cacti's main functions are:

• Defining and configuring data sources (what you are monitoring).
• Creating and viewing graphs (based on how you configure the graph).
• Managing users (so that different users can do different things).

Cacti doesn't try to do it all when it comes to network monitoring, but it does what it claims to do very well.

You can learn more at the Cacti website.

What is the easiest way to demo Cacti?

Believe it or not, trying out open source networking tools like Cacti can be quick and painless.

I recommend downloading VMware Player (for free) and then downloading preconfigured, pre-installed versions of Cacti, inside a VMware Guest OS. You would do this, of course, from the VMware Virtual Appliance Marketplace. Let me show you how. <...

Digg This!     StumbleUpon     Del.icio.us

RELATED CONTENT Network Monitoring Meru reinvents wireless LAN troubleshooting and management Green enterprise: Three networking investments that make a difference Network device management overload: Engineers managing too many boxes What preventative maintenance procedures for network devices exist? WLAN QoS and SLA monitoring with 7/24 Wireless Quality Assurance costs How important are network infrastructure maps for engineers or admins? Understand Windows tracert output to troubleshoot network connectivity Network management and monitoring market remains crowded, fragmented When do applications suffer from poor network performance? Xangati help desk 'DVR' feature speeds up trouble ticketing resolution Network Monitoring Research Network Management Green enterprise: Three networking investments that make a difference Distributed network management means no more hard NOCs Green data center networks: Smarter architecture, not expensive devices Internal cloud computing on the cheap: Free automated provisioning? With virtual OS and virtual applications, who needs virtual machines? Application switch testing: An easy RFP guide Virtualization: The next generation of application delivery challenges Improving the performance of Web traffic and application delivery The link between network management and application delivery How to align network usage information to business processes

RELATED GLOSSARY TERMS Terms from Whatis.com − the technology online dictionary 10-high-day busy period  (SearchNetworking.com) ACK  (SearchNetworking.com) baseboard management controller  (SearchNetworking.com) call failure rate  (SearchNetworking.com) jam  (SearchNetworking.com) Jini  (SearchNetworking.com) maximum segment size  (SearchNetworking.com) maximum transmission unit  (SearchNetworking.com) netstat  (SearchNetworking.com) network tracking tool  (SearchNetworking.com)

RELATED RESOURCES 2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems Search Bitpipe.com for the latest white papers and business webcasts Whatis.com, the online computer dictionary

/p>

1. Download and install VMware Player.

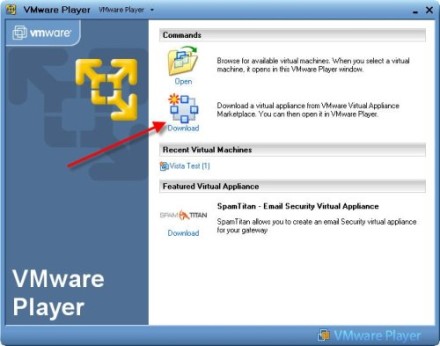

2. Run VMware Player and click on "Download Virtual Appliances," below:

[IMAGE]

3. Do a search for Cacti (or any of the other open source network applications that interest you).

4. Download one of these Cacti virtual appliances. I recommend the virtualappliances.net Cacti Appliance site only because I used it and it worked as promised.

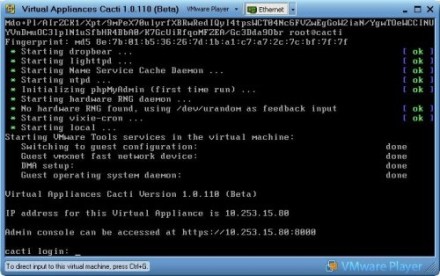

5. Once downloaded, start it up in VMware Player, get your IP address from the console window and log in with your Web browser to the IP, using the default username and password.

[IMAGE]

6. From there, I configured Cacti to monitor my core router and start creating graphs of the local Cacti virtual server performance and the core router's bandwidth usage.

To do this, I just needed to know the IP address and SNMP public community string for my core router. You can read about what to click on to configure Cacti to monitor a new host and to create graphics. Specific instructions can be found in the Cacti user manual.

After adding the host and creating the graph for the router's interface, I waited a little while for data to be collected and my Cacti services to pick it up.

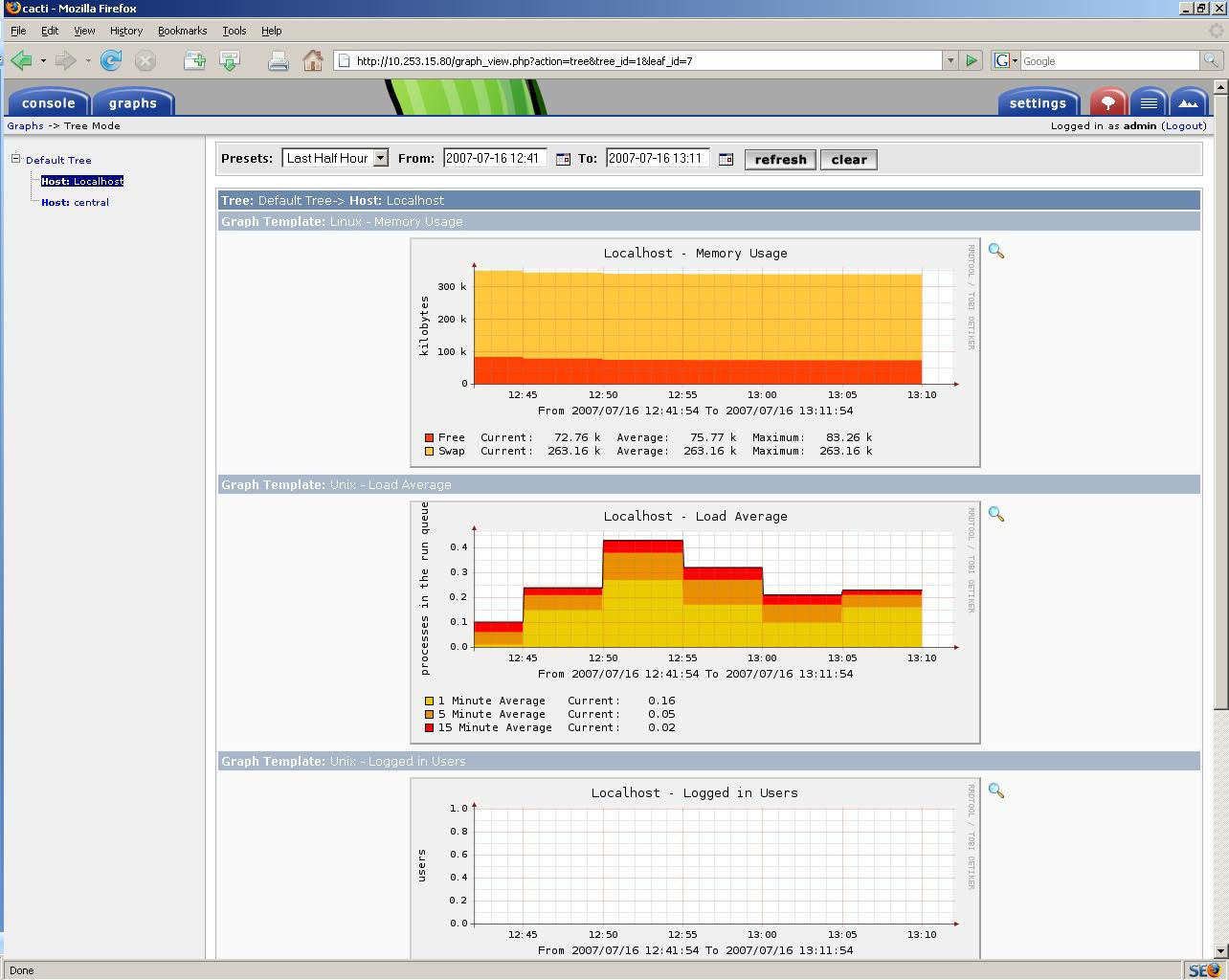

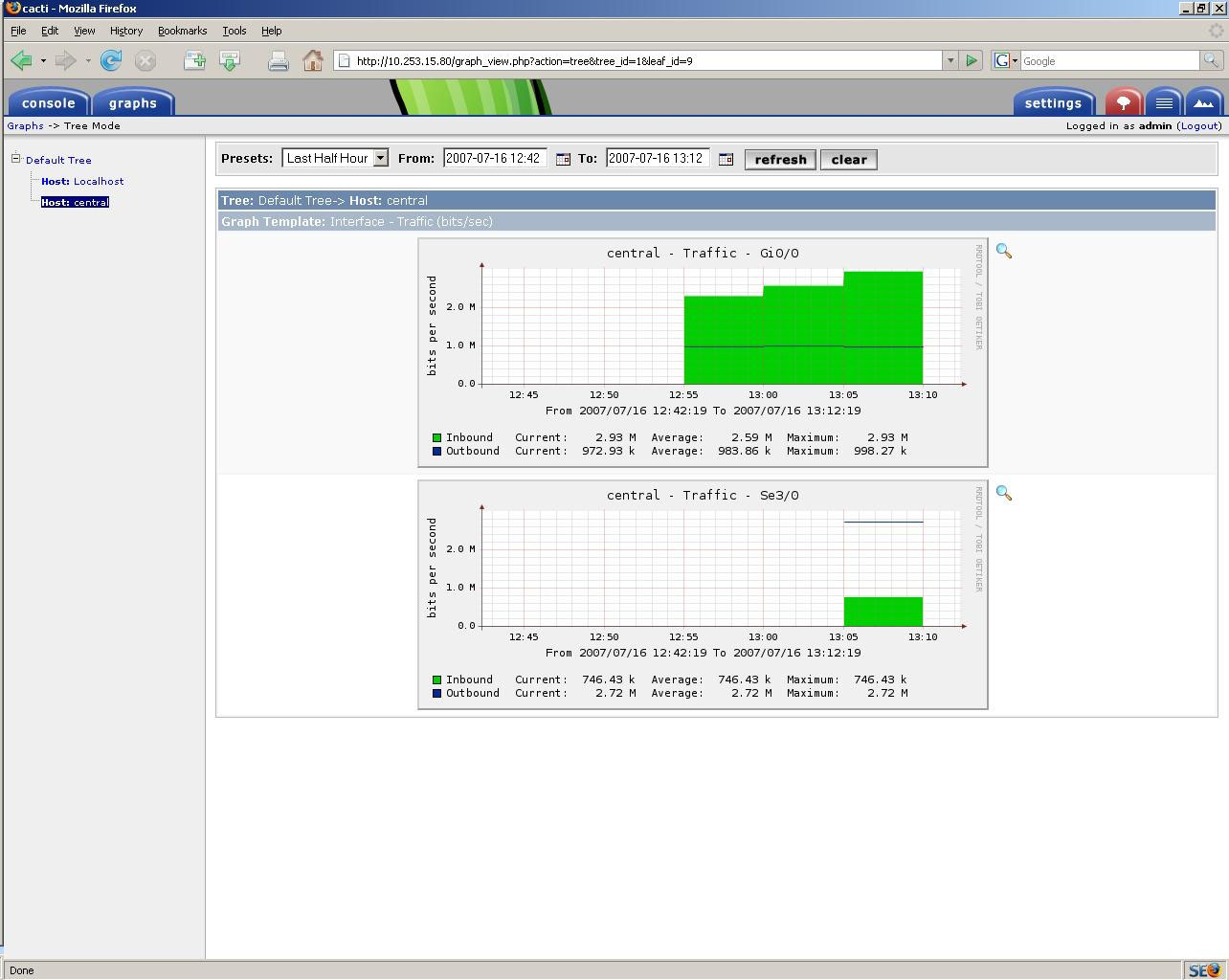

This is what they looked like:
