There is no point in implementing a proxy server if no one is going to use it. And, because the environment we are setting up is for "guest" users, we ideally want it to work without any (or, at least as little) support required. So, this month we will look at implementing Web Proxy Auto Discovery Protocol (WPAD).
When firewalls were first introduced, they were all proxy based. So, in a firewalled environment, users needed to manually configure proxies for services such as http, ftp, and gopher. As you can imagine, working in a "proxy" environment does have some drawbacks: First, you need a client that can support proxies. Second, you need to get the proxy information. The second problem is particularly troublesome for guest users because they have to get the information in order to connect to the network. This often resulted in calls to the support desk for internal users (who have forgotten what the proxies are) and the guests who need access.
With the advent of stateless firewalls, the requirements for proxies faded away, except in the case of Web caching. In an environment in which a large group of users retrieve very similar content, Web caching can improve performance and save Internet bandwidth (between 10% and 30%), especially if you have low-speed connections. There are also security considerations for using Web caching, which we have covered in past articles. However, to get the security and the savings, users need to use a proxy.
Enter WPAD. Invented by Microsoft, it was developed into an IETF draft (now expired). WPAD is more a process than a protocol. Web browsers can employ the process to automatically discover Web proxy server information and configure the Web browser to utilize the server for the duration the application operates. Although WPAD has expired as a standard, Microsoft's Internet Explorer (IE5 and higher) and the Mozilla Web browsers support WPAD. In the case of IE, it is enabled by default. To make sure it's enabled (some corporate Active Directory environments disable it as a security measure), select the Tools>Internet Options>Connections>LAN Settings> menu, then check the "Automatically detect settings" checkbox. In Mozilla or Firefox, you can check by selecting the ...
To continue reading for free, register below or login
To read more you must become a member of SearchNetworking.com
Tools>Options>Connections Settings> menu. Make sure "Auto-detect proxy settings for this network" is selected.

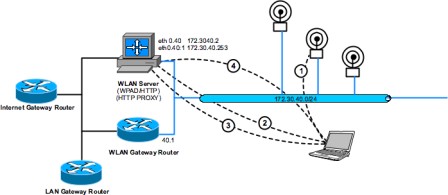

Now, as mentioned above, WPAD is more of a process than a protocol. The process workings are illustrated here:
[IMAGE]
- Host joins the wireless segment.
- Client launches Web browser with WPAD enabled. Browser performs WPAD server lookup.
- Web browser successfully resolves wpad.x, downloads wpad.dat.
- Web browser establishes connection with web proxy server and starts to sends URL requests to proxy server.
In order to get this process to work, an environment needs to have a few different elements in place. Two very important elements that regular readers should be very familiar with are DHCP and DNS. DHCP provides client IP addressing and the host's fully qualified domain name (FQDN) information. The DNS server provides the name "resolving" service that enables the host to figure out what it's FQDN is and resolves the wpad.x, a record query that tells the Web client the IP address of the server that is hosting the wpad.dat file. This is the point where we need to "expand" our infrastructure, so to speak. We have the above DHCP and DNS resources in place (theoretically, at least). In order to get our WPAD service up and running, we need to complete two tasks: build a Web server and create our wpad.dat file. Then we'll need to make the required DNS/DHCP changes.
Building a Web server
In the Unix/Linux world, Apache is the "standard" for Web servers. However, Apache is a little bulky when it comes to configuration and is far more than we need to simply host a WPAD server. As an alternative, we will implement a lightweight but very effective http service called < href=http://www.acme.com/software/mini_httpd/mini_httpd-1.19.tar.gz>mini_http. Of course, all build efforts start with getting the source code:
Once the code is on our server, we need to expand the tar ball:
Now, we move to the source directory, type "make," and we have our applications.
There are two applications: htpasswd and mini_httpd. These applications and the configuration files on which they rely now all must be installed in a chroot jail. This will make the Web server as secure as the other applications running in our proxy environment.
Now we install the binaries and man pages:
The last step is to copy the libraries on which htpasswd and mini_httpd depend:
We need to make one more directory:
With the application installed, we must install the support files for mini_httpd. There are three: mime_encodings.txt, index.html, and mini_httpd.cnf. The mine_encodings.txt and mini_httpd.cnf files can be copied from the build directory to the /usr/local/httpd/etc directory. These files are part of the default configuration and do not require any editing.
The index.html file is not required for WPAD, but is required for normal Web server operation. You can use the one supplied with the distribution for testing.
The last file required is the server configuration file. This file is called from the command line and tells the daemon what IP address and service port to listen on, the user to run the server as and the directory structure. Here is an example
These items can all be defined using command line flags, but this option is far easier. To start the mini-http daemon, run the following:
This will start the service. To make sure the server is operating correctly, connect to the server address with your Web browser and you should see an index page.
Creating the wpad.dat file
Our second task is to create a wpad.dat file. The file is essentially a Netscape proxy.pac file with a new name. Prior to WPAD, Netscape came up with a feature that allowed network administrators to build a proxy configuration file that the Web browser could download and then use to configure proxy settings. This approach had the advantage of making it easier to manage a proxy environment, but it still had the downside of requiring the user (in most cases) to configure the browser to look for the proxy.pac file. Microsoft did develop a method to provide users the location of the proxy.pac file via DHCPINFORM message and/or an Active Directory policy (on certain Windows OS variants), but this approach is only supported by Windows systems. A very simple proxy configuration file is required to support WPAD. It has three rules:
- Rule 1: If the Web site requested is local, do not proxy; send directly to the server.
- Rule 2: If the Web site if not covered by rule #1, then send to the proxy.
- Rule 3: If the proxy fails, then send the request directly to the server.
This basic rule set covers most proxy environments. You do not normally want local Web sites to be accessed thru a proxy server; performance is always better direct. You want external sites to go to the proxy. However, you can add rules to make exceptions for external sites if you need to. You also want users to be able to access Web sites if the proxy is down. Here is an example using the Web site domain name as the "local" qualifier:
Alternatively, you can use a host's IP address as the "local" qualifier:
In both of these examples, as I mentioned above, if the proxy is down, the HTTP client attempts to connect the site with a direct request. In our WLAN proxy environment, we do not want users directly connecting, so we need to remove rule #3. This is done easily by removing the "DIRECT" statement following the proxy server designation. Here is an example:
With the wpad.dat, if the proxy server is down, the user gets an error page from the client.
Changes to DNS/DHCP
The third and final step is to make the required DNS/DHCP changes. On the DNS side, you need to create A-records and CNAME (canonical name) pointers for wpad.x.x and the proxy server. On the DHCP side, you must make sure that you are propagating OPTION 15 – Domain Name to your DHCP clients, otherwise the hosts are unable to properly resolve the WPAD server. For example, let's say we have three IP subnets we want to configure WPAD for.
IP SubnetDomain Name
172.30.71.0 usr.outlan.net
172.30.80.0 open.outlan.net
192.168.20.0 cell.outlan.net
There are few approaches one can take. The first (and simplest) is to use a common domain name for each network: outlan.net. The second, (which can be more complex) is for each IP subnet to have its own sub-domain.
The browser will not derive its domain-name information by performing a reverse lookup of the host's assigned IP address. In order for WPAD to work, the domain name needs to be defined using OPTION 15. So, unless you plan to implement forward and reverse lookup entries and require that hosts on each subnet can be identified by sub-domain for each DHCP assigned client address, the "single domain" is fine for most implementations. That said, host identification aside, if you wish to have subnet-specific proxy handling rules, implementing the "sub domain" option with the subnet-specific wpad.dat files is the only way to go. It is also possible to strike a happy medium by having each DNS resolve to a common WPAD server using a CNAME record. Let's take a look at some configuration examples.
On the DHCP side, the configuration to support the "single domain" approach would look like this:
The DHCP configuration for the sub-domains would look like this:
The DNS configuration for the "single domain" implementation requires that only a forward and in-addr zone file be configured for the outlan.net domain. In our WLAN environment, we are running the proxy, DHCP and DNS on the same server, so only one A-Record is required. The wpad and proxy server entries are set with CNAME records. Here is the forward zone file:
And here is what the in-addr zone file looks like:
In a sub-domain environment, forward and in-addr zone files would be needed for each IP subnet, but the required entries would be quite similar. The exception would be if a single WPAD server were used to support all of the subnets. In this case, only CNAME entries would be needed for the two sub-domains that did not have there own WPAD server. For example, let's say that the WPAD server is physically located in the usr.outlan.net subnet. The forward zone file would look like this:
The other sub-domain forward DNS records would have only CNAME records:
Most of the problems with implementing WPAD end up being issues with DHCP and DNS. As you can see, there are a number of ways that you can implement WPAD. You just need to figure out what works best for your environment. One of the easiest ways to troubleshoot problems with WPAD is to use TCPdump to monitor your web browser's behavior. If your WPAD implementation is working correctly when the Web browser loads up, you should see a DNS request for the WPAD server, followed by a DNS request for proxy server:
If you don't see these DNS requests, there is something wrong. First, make sure that the host knows what its domain name is. In the Mac OS X, this can be done using the <ipconfig> command, with the {getpacket <int>} option:
In the Windows environment, this information can be viewed using the <ipconfig> command.
If the host has the proper domain information (and is performing the DNS resolutions when the Web client starts), the next step is to check the wpad.dat file syntax. Use the examples above for comparison.
Well, that's all you should need to know about WAPD. Next time we will jump the last user access hurdle for WLAN proxy: how to passively redirect user Web traffic to allow for network access.
