Now that you understand the host's formula, you should also know the subnet's formula, which will help you make sure you have the right subnet mask for the number of subnets that you have. Just because you determine that you have the right number of hosts for your LAN using the host's formula, doesn't mean that you will have enough subnets (networks) for your network. Let's see how the subnet's formula works.
The subnet's formula is 2n, where n is the number of 1s added to the subnet mask, from whatever the subnet mask was. Let's take the same example I had above but build on it.
Say that I have network 192.168.0.0 and want to subnet it to support all my networks and hosts, and say that I expect to have 100 remote sites with 300 PCs each. What subnet mask should I use? In our last example, we found that the 255.255.254.0 subnet mask provided me with 510 hosts per subnet. That was more than adequate to support my 300 PCs, but does that same subnet mask provide me with networks for at least 100 remote sites? Let's find out.
To apply the subnet's formula to our 192.168.0.0 network, we start with the current subnet mask. What is the current subnet mask? I'm not talking about the classful subnet mask, just the current subnet mask for that network, which is 255.255.0.0. I can't use that subnet mask because it provides me with 65,000 hosts but only one network. I need at least 100 networks and at least 300 hosts per network. I want to "add 1s" to that subnet mask and break it up into more networks with fewer hosts (fewer than 65,000).
To do this, let's convert the 255.255.0.0 subnet mask to binary.
255.255.0.0 =
11111111 11111111 00000000 00000000
(in binary)
I am going to add 1s right after the last 1 on the right (in the middle of the mask, between
To continue reading for free, register below or login
To read more you must become a member of SearchNetworking.com
the 1s and 0s). So, how many 1s do I add?
Let's throw a number out there, and say that I add five 1s to make it look like this:
11111111 11111111 11111000 00000000
Using the subnet's formula, this would give us 25 = 32 networks.
Thirty-two networks aren't enough to support my 100 remote sites, no matter how many hosts are in each network.
Let's add two more 1s to make it look like this:
11111111 11111111 11111110 00000000
Using the subnet's formula, this would give us 27 = 128 networks
This is at least 100, so I have enough subnets for my 100 remote networks. Do I have enough hosts? Using the host's formula, we calculate 29 – 2 = 510 (which we had already calculated above). So, we have enough hosts for our 300 PCs at each remote site.
This means that we have found the right subnet mask for our network. We convert our subnet mask from binary back to decimal and get 255.255.254.0.

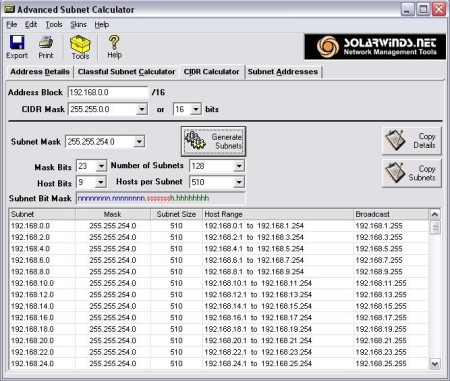

Here is a screenshot and text output from the Solarwinds subnet calculator that verifies our calculations and shows which IP addresses are in which network:
[IMAGE]
In the real world
In the real world, chances are that you may never have the opportunity to design a large network such as this from scratch. However, large-scale network design skills are valuable for a variety of reasons:
