IPv6: Learn it, love it

The Structure of the IPv6 Protocol
General header structure:
The general header structure of IPv6 is specified in RFC 2460 and has a fixed-length of 40 bytes:

Changes in the general header structure:
Five fields have been removed from the IPv4 header:

1. Header Length (fixed length header doesn't need it)
2. Identification
3. Flags
4. Fragment Offset
5. Header Checksum (checked at the transport layer)

Three fields have been renamed and modified from the IPv4 header:

1. Traffic Class (type of service in IPv4)
2. Next Header (protocol type in IPv4)
3. Hop Limit (Time to live in IPv4)

One field has been added:

1. Flow Label (still under discussion at IETF)

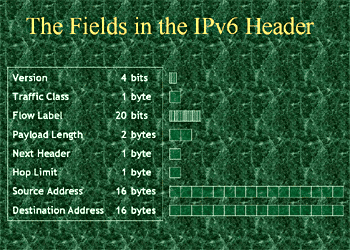

This is a snapshot of the fields in an IPv6 header. The biggest part of the header are the source and destination address information - this lean header makes forwarding of an IPv6 packet much more efficient.

Next header field

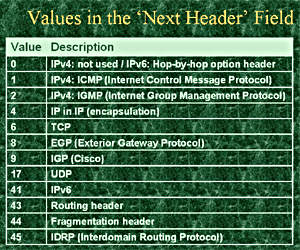

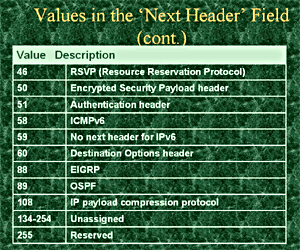

The "Next Header" field is one byte, called 'Protocol Type' in IPv4 and it's basically used the same way. If the next header is TCP or UDP, the field contains the same protocol numbers as with IPv4.

If extension headers are used with IPv6, this field contains the type of the first extension header. Extension headers are located between the IP header and the TCP or UDP header.

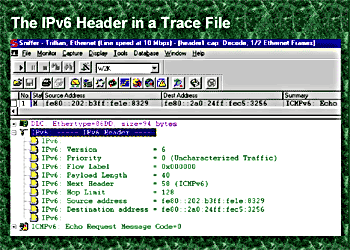

This trace file shows the IPv6 header in a trace file. It shows only one packet. The summary line displays the source and the destination address as well as a summary line identifies the type of packet (Echo.) In the lower portion of this diagram the IPv6 header is opened up to show you what it looks like in a trace file. You see the version number 6, and the next header field in the middle of the detail field contains the value 58 for ICMPv6. You see the hop limit of 128 and the source destination address. This is what an IPv6 address looks like. Pretty cool, isn't it?

Extension headers
Options in IPv6 are handled in an extension header. The good thing about extension headers is that they can be inserted if they are needed, but not inserted if they're not needed. In IPv4 we had options within the IPv4 header, so a router would always have to go into the IPv4 header and check if there were options. That's not necessary in IPv6 because the router can see whether there are extension headers that need to be examined or not. Here's a short list of the main extension headers that have been defined so far.

The current IPv6 specification defines six extension headers:

1. Hop-by-hop options header
2. Routing header
3. Fragment header
4. Destination options header
5. Authentication header
6. Encrypted security payload header

Extension headers (cont.)

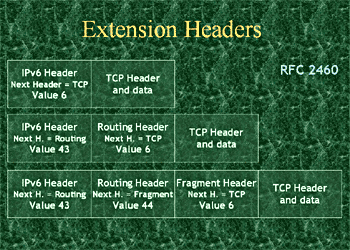

This picture shows you how the extension header fits into an IPv6 packet. The first line you have the basic IPv6 header with no extension headers. In this case, the TCP header follows right after the IPv6 header. The IPv6 header contains the next header value of six that says it is TCP/IP. The second line shows the packet that has a routing header inserted. In this case, the IPv6 header has a value of 43 indicating that the next header will be a routing header. The next header is a routing header and it contains the value six in the next header field. So after the routing header, we know we will have a TCP header. And the last line shows how different extension headers can be piled up on each other and how more than one header can be between the IPv6 header and the TCP header. In this case we have an IPv6 header, next a routing header and than a fragment header and finally the TCP header.

Usually extension headers are examined by the destination node only. The hop-by-hop options header is an exception to this rule and carries optional information that must be examined by every node along the path of the packet. It has a Next Header value of zero. An example of why the hop-by-hop header would be used is if you use a Router Alert (RFC 2711) for RSVP (resource reservation protocol.)

The Routing Header is used to give a list of one or more intermediate nodes that should be visited on the packet's path to its destination. It is identified by a next header value of 43.

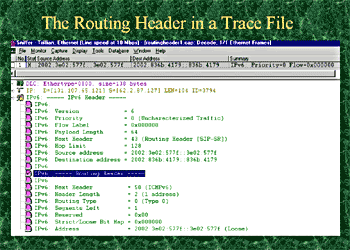

The routing header in a trace file

This diagram shows a routing header in a trace file. We have the source and destination address in the summary line. You see the details of the IPv6 header which as been opened to view the details.

You see version 6 for IPv6 than you see next header value 43 which is decoded by Sniffer as being a routing header. The hop limit is set to 128 -- source and destination address can be seen, which are the regular fields of the IPv6 header. Next is the routing header. You see the format of the routing header -- and the next header value of 58 that says after this routing header we will have an ICMPv6 header. Then you see the segments left field which has a value of one and this field tells you how many values are in the option part of this extension header. In this case we should have one routing entry that indicates there is one node that needs to be visited on this packets' path. On the last line you finally see the address of the node to be visited that is 2002:3e02:577f::3e02:577f. That is the route that has been entered. It could contain a number of routes - the segments left field would contain the number of routes that have been entered. And by the way, the (Loose) decode that you see is not according to the newest standard, it's just an outdated decode and those fields need to be set to zero (as they are.)

The fragment header is used to handle fragmentation. Fragmentation happens when packets have to be sent over links that have an MTU (Maximum transmission unit) smaller than the packet size. In this case the packet is sliced into fragments that fit the MTU. The fragments are reassembled at the destination. There is one big change with fragmentation in IPv6 -- routers do not fragment packets anymore. The next header value 44 identifies the fragment header.

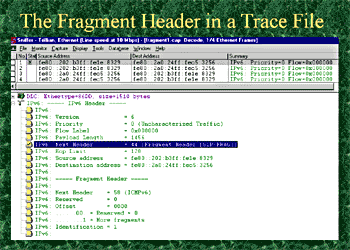

This is the detail on the last fragment in the packet set. All the values are basically the same with three differences - this is now the first packet, in the last packet it was zero. Here we have an offset and we have the value zero in the last fragment field indicating that it is the last packet of our fragment set. The identification is one because the two packets belong to the same set.

The destination options header is used to carry optional information that is examined by the destination node only and it is identified by a next header value of 60

Mobile IPv6
An example for the use of a destination options header and a routing header would be mobile IPv6. Our networks are becoming more and more mobile and wireless. So there is a need to define mobile IPv6. Both the routing header and the destination options headers are used with Mobile IPv6 to ensure applications don't lose their TCP connection while a user is roaming from one network to another. Mobile IP uses home agent, home address, and care-of address.

For information about Mobile IPv6, refer to http://www.ietf.org/internet-drafts/draft-ietf-mobileip-IPv6-19.txt (Oct. 2002)

This concludes part one of Getting ready for IPv6. Click here for part two on IPv6 addressing.
