Protocols, Lesson 7: Subnet masks and their effect

We are going to analyze the common subnet masks for each class, giving detailed examples for most of them and allowing you to "see" how everything is calculated and understand the different effects a subnet mask can have as you change it. Once you have mastered this, you can then go on and create your custom subnet masks using any type of class.

Default subnet masks of each class

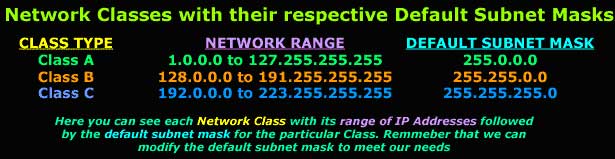

The picture below shows our three network classes with their respective default subnet masks:

The effect of a subnet mask on an IP address

We can see this once again in the picture below, where the IP address is analyzed in binary, because this is the way you should work when dealing with subnet masks:

We are looking at an IP address with its subnet mask for the first time. What we have done is take the decimal subnet mask and converted it to binary, along with the IP address. It is essential to work in binary because it makes things clearer and we can avoid making silly mistakes. The ones (1) in the subnet mask "lock" or, if you like, define the network ID portion. If we change any bit within the network ID of the IP address, then we immediately move to a different network. So in this example, we have a 24 bit subnet mask.

NOTE:

All class C classful IP addresses have a 24 bit subnet mask (255.255.255.0).

All class B classful IP addresses have a 16 bit subnet mask (255.255.0.0).

All class A classful IP addresses have an 8 bit subnet mask (255.0.0.0).

On the other hand, the use of an IP address with a subnet mask other than the default results in the standard host bits (the Bits used to identify the HOST ID) being divided in to two parts: a subnet ID and Host ID. These types of IP addresses are called classless IP addresses.

In order to understand what a "classless IP address" is without getting confused, we are going to take the same IP address as above, and make it a classless IP address by changing the default subnet mask:

Looking at the picture above you will now notice that we have a subnet ID, something that didn't exist before. As the picture explains, we have borrowed three bits from the host ID and used them to create a subnet ID. Effectively we partitioned our class C network into smaller networks.

If you're wondering how many smaller networks, you'll find the answer on the next page. I prefer that you understanding everything here rather than blasting you with more subnet ID's, bits and all the rest :)

Summary

When we use IP addresses with their default subnet masks, e.g. 192.168.0.10 is a class C IP address so the default subnet mask would be 255.255.255.0, then these are "classful IP addresses."

On the other hand, classless IP addresses have their subnet mask modified in a way so that there is a "subnet ID". This subnet ID is created by borrowing bits from the host ID portion.

The picture below shows us both examples:

I hope that you have understood the new concepts and material on this page. Next we are going to talk about subnet bits, learn how to calculate how many bits certain subnet masks are and see the different and most used subnet masks available.

If you think you might have not understood a few sections throughout this page, I would suggest you read it once more :)
